If you enter in units of inches and press the [Convert] button, it will be
converted into units of millimeters in the quotation form.
inch
inch
Please fill in the layer order from top to bottom here.
Please fill in the layer order from top side view tobottom side according to
the layers name in your file.
How it works

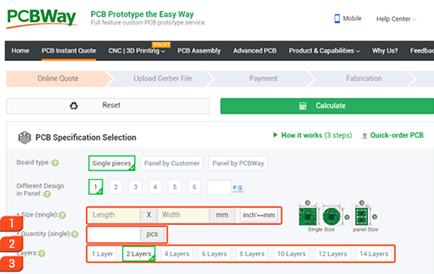

Step 1
-Fill in the basic parameters
The two parameters of size and quantity must be filled in, and the number of pcb
layers should also be selected.
1.
Input the maximum
length
and
width
of the board.
2.
Input the
order quantity.
3.
Choose the number of
PCB layers, so that the finished product can better conform to the Gerber file.
Original Picture

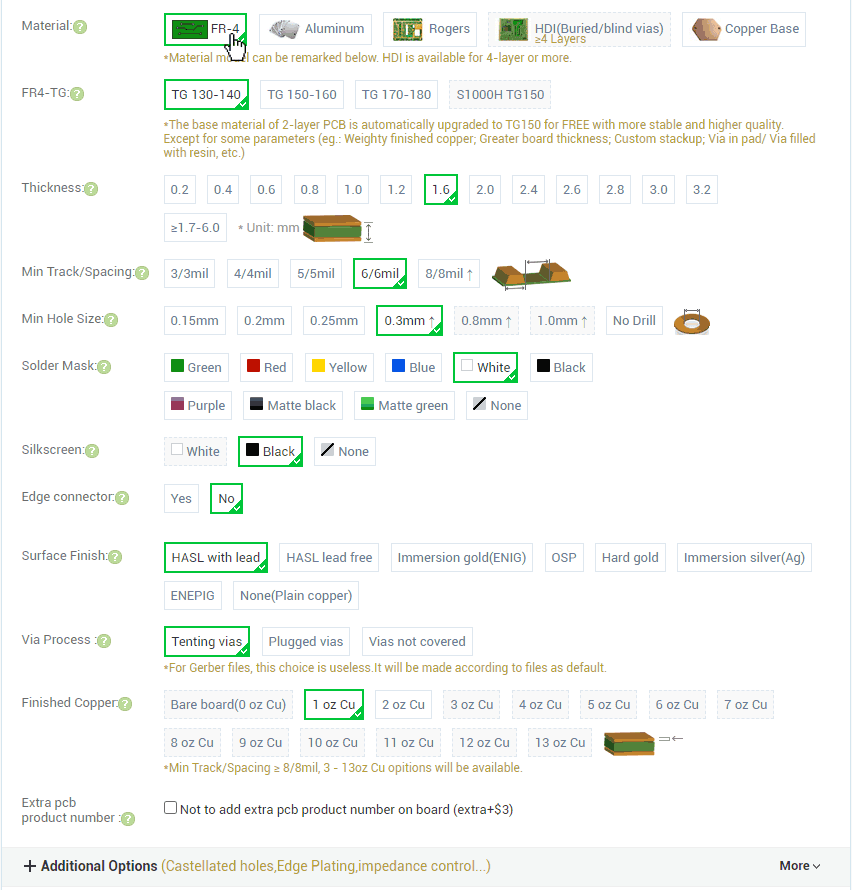

Step 2
-Confirm other parameters
You can use the parameters selected by default, or change the parameter options,
such as the base material, surface finish, special processes, order notes, etc.
The parameter options will be selected by default, and you can directly click
the "Calculate" button to get the quotation.
Of course, you can also change the default parameter values, such as the
base material, surface finish, special processes, order notes
, etc.
After you have determined all the parameters, click the "
Calculate
" button to get the quotation.
Original Picture

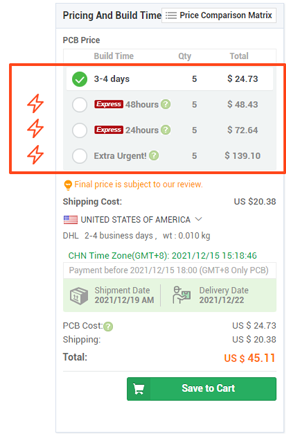

Step 3
-Select the lead time of the order
You can choose the lead time of the order, such as expedited service.
If you have requirements for lead time, you can choose
expedited or other options
in the pricing interface on the right.
Confirm the lead time, click the
Save to Cart
below, and the order will be successfully added to the shopping cart.
Gerber files need be uploaded on the shopping cart page.
